How can I change the printer paper?

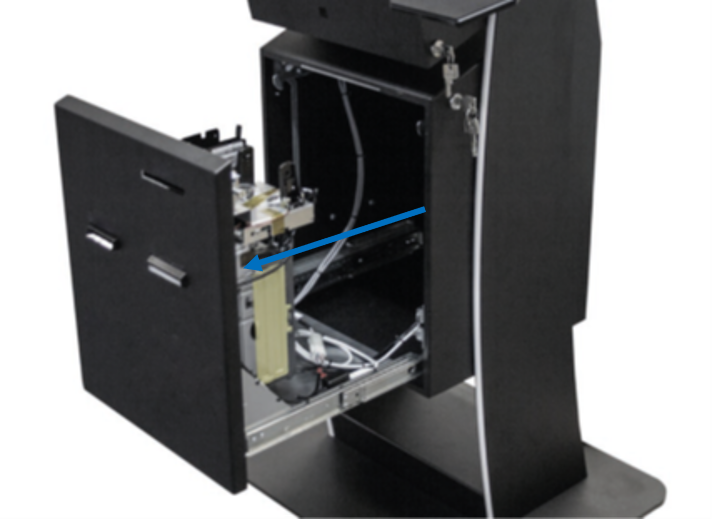

Bild1.png Open the main flap of the kiosk.

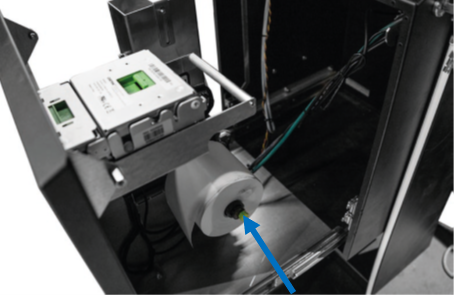

Bild2.png Place the roll on the holder provided.

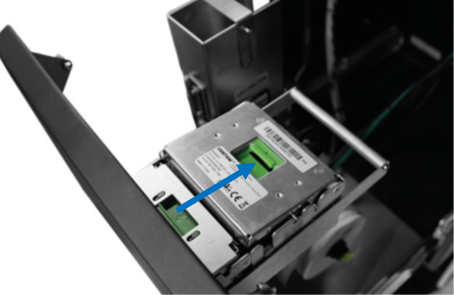

Bild3.png Open the push button by pulling the rear green lever backwards.

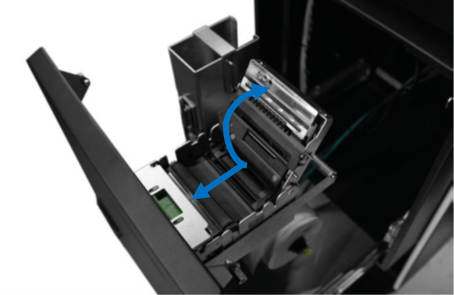

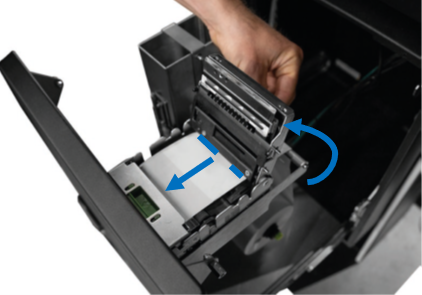

Open the paper holder and insert the paper from the rear.

Please ensure that the paper is not lying on but next to the adjustable guide rail.


Close all flaps securely. The printer will automatically align the paper to the correct position for the next print job.



Why does the kiosk display that the printer has no paper even though paper is inserted?

If the paper is not inserted correctly, the kiosk reports that the paper is empty. In addition to the above description of how to insert the paper, please note the following information:

Ensure that the paper roll is in contact with the holder at the rear.

Slide the paper into the paper holder from the rear.

Adjust the paper guide so that the paper is positioned neatly between the two paper guides.
